MGH / Positive Top Inserts

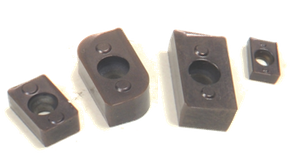

MGH Inserts.png

MGH-151 - MGH-1511


MGH / Positive Top Inserts
Insert #	R	L	W	T	Available Grades
MGH-151	.002	.250	.170	.080	B1M	X33
MGH-1510	.008	.250	.170	.080		X33
MGH-1511	.015	.250	.170	.080		K11

Insert Grade Descriptions

Used in Mini-Mills

MGH-2321 - MGH-2324

MGH-2321-2324 dimensions.png

MGH / Positive Top Inserts
Insert #	R	L	W	T	Available Grades
MGH-2321	.015	.400	.250	.140		X33
MGH-2322	.031	.400	.250	.140	B1M	X33
MGH-2323	.047	.400	.250	.140		X33
MGH-2324	.062	.400	.250	.140		X33

Insert Grade Descriptions

Used in RMS Mills

MGH-531A - MGH-5316B

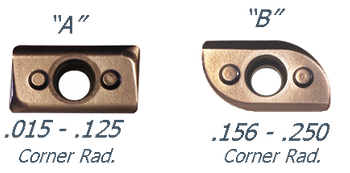

MGH corner Radius.png

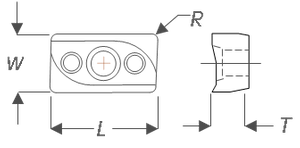

MGH-531A-5316B Dimensions.png

MGH / Positive Top Inserts
Insert #	R	L	W	T	Available Grades
MGH-531A	.015	.562	.313	.190		K11
MGH-532A	.031	.562	.313	.190	B1M	K11
MGH-534A	.062	.562	.313	.190		X33
MGH-536A	.093	.562	.313	.190		X33
MGH-538A	.125	.562	.313	.190		K11
MGH-5310B	.156	.562	.313	.190		K11
MGH-5312B	.187	.562	.313	.190		X33
MGH-5314B	.218	.562	.313	.190		X33
MGH-5316B	.250	.562	.313	.190		X33

Insert Grade Descriptions

Used in Radius Mills
