Dovetail cutters: 10°- 20°-15°- 30°
| 10° Dovetail Cutters | |||||||||||

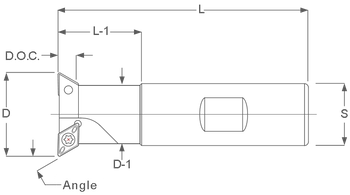

| Tool # | Angle | D | D-1 | Flutes | L | L-1 | D.O.C. | S | Inserts | Screw | Wrench |
| DT-1010 | 10° | 1.000 | .865 | 2 | 3.000 | 1.000 | .260 | .750 | DDEB-2151P | 314T | T-8 |
| DT-1510 | 10° | 1.500 | 1.320 | 2 | 3.250 | 1.250 | .380 | .750 | DPEB-3252P | 538T | T-10 |
| 15° Dovetail Cutters | |||||||||||
| Tool # | Angle | D | D-1 | Flutes | L | L-1 | D.O.C. | S | Inserts | Screw | Wrench |
| DT-1015 | 15° | 1.000 | .830 | 2 | 3.000 | 1.000 | .255 | .750 | DDEB-2151P | 314T | T-8 |
| DT-1515 | 15° | 1.500 | 1.250 | 2 | 3.250 | 1.250 | .370 | .750 | DPEB-3252P | 538T | T-10 |
| 20° Dovetail Cutters | |||||||||||
| Tool # | Angle | D | D-1 | Flutes | L | L-1 | D.O.C. | S | Inserts | Screw | Wrench |
| DT-1020 | 20° | 1.000 | .830 | 2 | 3.000 | 1.000 | .250 | .750 | DDEB-2151P | 314T | T-8 |
| DT-1520 | 20° | 1.500 | 1.250 | 2 | 3.250 | 1.250 | .360 | .750 | DPEB-3252P | 538T | T-10 |
| 30° Dovetail Cutters | |||||||||||
| Tool # | Angle | D | D-1 | Flutes | L | L-1 | D.O.C. | S | Inserts | Screw | Wrench |
| DT-7530 | 30° | .750 | .488 | 1 | 3.000 | 1.125 | .220 | .750 | DDEB-2151P | 314T | T-8 |
| DT-1075 | 30° | 1.000 | .700 | 2 | 3.000 | 1.000 | .220 | .750 | DDEB-2151P | 314T | T-8 |
| DT-1575 | 30° | 1.500 | 1.062 | 2 | 3.250 | 1.250 | .345 | .750 | DPEB-3252P | 538T | T-10 |
Insert Info: 10° 15° 20° & 30° Dovetail Cutters
| DDEB & DPEB
Inserts 10° - 15° - 20° - 30° Dovetail Cutters |
||||
| Insert# | I.C. | T | R | Grade |
| DDEB-2151P | .250 | .095 | .015 | K11 / K22 |
| DPEB-3252P | .375 | .156 | .031 | K11 |
Technical Data
| Speed and Feed Info. Dovetail Cutters:10° 15° 20° 30° |
||
| Material | S.F.M. | I.P.T. |
| Mild & Low Carbon Steel Ex. 1018, 1020, 1117, 1141, 12L14 |
800 - 1200 | .002 - .005 |
| High
Carbon & Alloy Steel Ex. 1045, 4140, 4340, 52100, 8620 |
500 - 800 | .002 - .005 |
| Lower
Carbon Tool Steel Ex. P-20, H-13, S-7 |
400 - 700 | .002 - .005 |
| Tool
Steel Ex. A-2, A-6, D-2, M-2 |
300 - 600 | .002 - .005 |
| Stainless
Steel Ex. 304, 316, 420, 15-5PH, 17-4PH |
300 - 600 | .002 - .005 |
| Iron Ex. Cast, Ductile, Nodular |
600 - 1000 | .002 - .006 |
| Nickel
& Titanium Alloy Ex. Inconel, Hastelloy, TI-6AL-4V |
120 - 180 | .001 - .002 |
| Non-Ferrous
Metal Ex. Aluminum, Bronze, Brass |
1000 - 2500 | .002 - .006 |
| Dovetail Cutters: 10° - 15° - 20° & 30° | ||
| Material | Material Examples | Preferred Grade |
| High & Low Carbon Steels | 1018, 1020, 1117, 1141, 12L14 | K11 |
| High Carbon & Alloy Steels | 1045, 4140, 4340, 52100, 8620 | K11 |
| Lower Carbon Tool Steels | P-20, H-13, S-7 | K11 |
| Tool Steels | A-2, A-6, D-2, M-2 | K11 |
| Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | K11 |
| Iron | Cast, Nodular | K11 |
| Iron | Ductile | K11 |
| Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | K11 |
| Non-Ferrous Metals | Aluminum, Bronze, Brass | K11 |
| Insert Grade Description | |
| Grade | Description |
| K11 | Universal High Performance Dense Coating |
