45° Dovetail Cutters

45° Dovetail Cutter.png

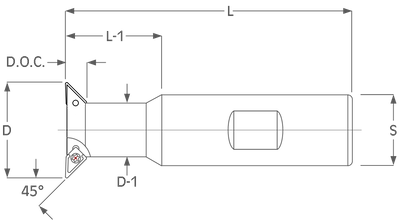

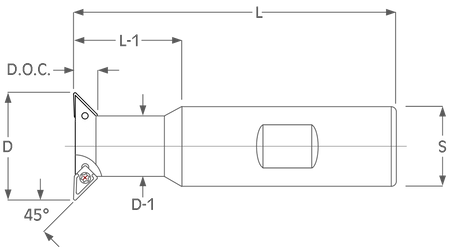

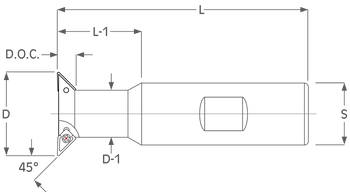

45 degree dovetail Illustration.png
Tool Info.
45° Dovetail Cutters
Tool # D D-1 Flutes L L-1 D.O.C. S Screw Wrench Insert
DT-5050 .500 .312 1 2.500 .750 .110 .500 164T T-6 DTI-1511P
DT-6250 .625 .312 1 2.500 .750 .170 .500
DT-7550 .750 .375 1 2.500 .750 .200 .500
DT-1175 1.000 .562 2 3.000 1.000 .200 .750
DT-1210 1.250 .812 3 3.500 1.250 .200 1.000

Insert Info.

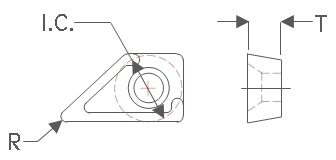

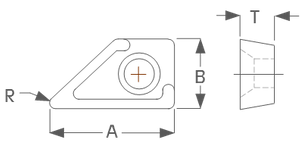

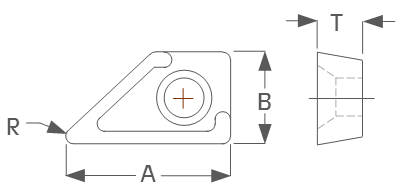

45° Insert Dimensions.png
Insert Info.
45° Dovetail Cutter Insert
Insert# A B T R Grade
DTI-1511P .328 .187 .082 .015 X33

Technical Data

Speed and Feed Info.
45° Dovetail Cutters
Material S.F.M. I.P.T.
Mild & Low Carbon Steel
Ex. 1018, 1020, 1117, 1141, 12L14
800 - 1200 .001 - .002
High Carbon & Alloy Steel
Ex. 1045, 4140, 4340, 52100, 8620
500 - 800 .001 - .002
Lower Carbon Tool Steel
Ex. P-20, H-13, S-7
400 - 700 .001 - .002
Tool Steel
Ex. A-2, A-6, D-2, M-2
300 - 600 .001 - .002
Stainless Steel
Ex. 304, 316, 420, 15-5PH, 17-4PH
300 - 600 .001 - .002
Iron
Ex. Cast, Ductile, Nodular
600 - 1000 .001 - .002
Nickel & Titanium Alloy
Ex. Inconel, Hastelloy, TI-6AL-4V
120 - 180 .001 - .002
Non-Ferrous Metal
Ex. Aluminum, Bronze, Brass
1000 - 2500 .001 - .003
Insert Grade Selection
45° Dovetail Cutters
Material Material Examples Preferred Grade
High & Low Carbon Steels 1018, 1020, 1117, 1141, 12L14 X33
High Carbon & Alloy Steels 1045, 4140, 4340, 52100, 8620 X33
Lower Carbon Tool Steels P-20, H-13, S-7 X33
Tool Steels A-2, A-6, D-2, M-2 X33
Stainless Steels 303, 304, 316, 420, 15-5PH, 17-4PH X33
Iron Cast, Nodular X33
Iron Ductile X33
Nickel & Titanium Alloys Inconel, Hastelloy, TI-6AL-4V X33
Non-Ferrous Metals Aluminum, Bronze, Brass X33
Insert Grade Description
45° Dovetail Cutters
Grade Description
X33 High Performance Nitride Coating
