Button Cutters - Series #3
- .812 - 1.500 Dia. Endmill Style
- - Radial chip thinning allows for higher feed rates
- - Extremely free cutting positive top inserts
- - Ground & molded inserts available
- - multiple grades available

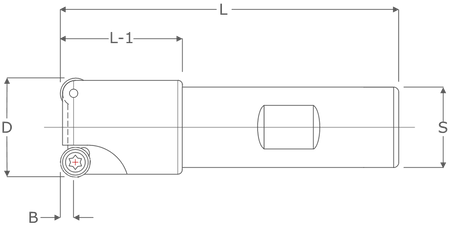

| Tool Info. Series #3 Button Cutters |
||||||||||||
| Tool # | D | B | Flutes | L | L-1 | S | Plunge | Ramp | Ground Inserts | Molded Inserts | Screw | Wrench |
| BC3-812L | .812 | .187 | 2 | 4.750 | 2.500 | 1.000 | .025 | 5° | RCEB-325G | RCEB-325 | 538T | T-10 |
| BC3-812XL | .812 | .187 | 2 | 6.375 | 4.125 | 1.000 | .025 | 5° | ||||
| BC3-1000 | 1.000 | .187 | 2 | 3.500 | 1.500 | .750 | .040 | 5° | ||||
| BC3-1000L | 1.000 | .187 | 2 | 5.250 | 3.000 | 1.000 | .040 | 5° | ||||
| BC3-1000XL | 1.000 | .187 | 2 | 7.250 | 5.000 | 1.000 | .040 | 5° | ||||
| BC3-1500L | 1.500 | .187 | 2 | 6.750 | 4.500 | 1.250 | .065 | 4° | ||||
| BC3-1500XL | 1.500 | .187 | 2 | 10.187 | 7.500 | 1.500 | .065 | 4° | ||||
Insert Info
Ground Inserts
- Ground inserts will reduce tool pressure & provide a better finish over molded inserts.
| Insert Info. .375 I.C. - Ground |
|||
| Insert # | I.C. | T | Grades |
| RCEB-325G | .375 | .156 | B1M / X33 / X40 |
Molded Inserts
- Molded round inserts will provide reduced cutting pressure over a square shoulder mill without the cost of a ground insert.
| Insert Info. .375 I.C. - Molded |
|||
| Insert # | I.C. | T | Grades |
| RCEB-325 | .375 | .156 | X33 / A10M |
Technical Data
| Speed and Feed Info. Series #3 Button Cutters |
||
| Material | S.F.M. | I.P.T. |
| Mild & Low Carbon Steel Ex. 1018, 1020, 1117, 1141, 12L14 |
800 - 1200 | .003 - .012 |
| High
Carbon & Alloy Steel Ex. 1045, 4140, 4340, 52100, 8620 |
500 - 800 | .003 - .010 |
| Lower
Carbon Tool Steel Ex. P-20, H-13, S-7 |
400 - 700 | .003 - .010 |
| Tool
Steel Ex. A-2, A-6, D-2, M-2 |
300 - 600 | .003 - .010 |
| Stainless
Steel Ex. 304, 316, 420, 15-5PH, 17-4PH |
300 - 600 | .002 - .007 |
| Iron Ex. Cast, Ductile, Nodular |
600 - 1000 | .004 - .012 |
| Nickel
& Titanium Alloy Ex. Inconel, Hastelloy, TI-6AL-4V |
120 - 180 | .001 - .004 |
| Non-Ferrous
Metal Ex. Aluminum, Bronze, Brass |
1000 - 2500 | .004 - .014 |
| Insert Grade Selection RCEB ( Ground Inserts ) |
||
| Material | Material Examples | Preferred Grade |
| High & Low Carbon Steels | 1018, 1020, 1117, 1141, 12L14 | X33 |
| High Carbon & Alloy Steels | 1045, 4140, 4340, 52100, 8620 | X33 |
| Lower Carbon Tool Steels | P-20, H-13, S-7 | X33 |
| Tool Steels | A-2, A-6, D-2, M-2 | X33 |
| Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | X33 |
| Iron | Cast, Nodular | X33 |
| Iron | Ductile | X33 |
| Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | X33 |
| Non-Ferrous Metals | Aluminum, Bronze, Brass | X40 / B1M |
| Insert Grade Selection RCEB ( Molded Inserts ) |
||
| Material | Material Examples | Preferred Grade |
| High & Low Carbon Steels | 1018, 1020, 1117, 1141, 12L14 | X33 / A10M |
| High Carbon & Alloy Steels | 1045, 4140, 4340, 52100, 8620 | X33 / A10M |
| Lower Carbon Tool Steels | P-20, H-13, S-7 | X33 / A10M |
| Tool Steels | A-2, A-6, D-2, M-2 | X33 / A10M |
| Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | X33 / A10M |
| Iron | Cast, Nodular | X33 / A10M |
| Iron | Ductile | X33 / A10M |
| Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | X33 / A10M |
| Non-Ferrous Metals | Aluminum, Bronze, Brass | X33 / A10M |
| Insert Grade Description RCEB Inserts |
|
| Grade | Description |
| A10M | TIALN / TIN Coated Carbide |
| X33 | High Performance Nitride Coating |
| B1M | Uncoated Carbide - No Hone |
| X40 | Extremely Smooth Boride Coating |
