41° Multi-Purpose Chamfer Mills & 82° Long Edge Chamfer Mills

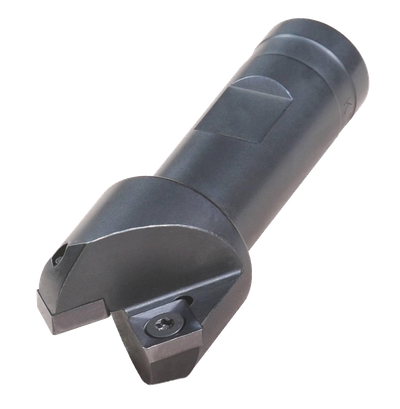

41° Multi-Purpose Chamfer Mills
- - Uses High Shear Positive Top Insert
- - Free Cutting
- - Excellent Part Finishes
- - Several Insert Grades Available

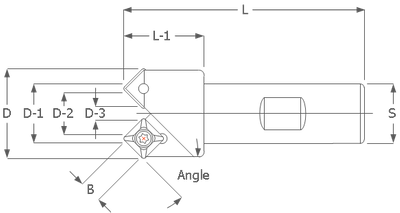

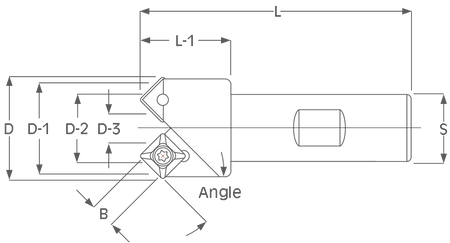

| Tool Info. 41° Multi-Purpose Chamfer Mills |
|||||||||||||
| Tool # | Angle | Flutes | D | D-1 | D-2 | D-3 | L | L-1 | B | S | Insert | Screw | Wrench |
| A-5772 | 41° | 2 | .625 | .430 | N/A | N/A | 2.500 | .750 | .156 | .500 | SPEB-1511CB | 164T | T-6 |
| A-5766 | 41° | 2 | 1.125 | .710 | .580 | .160 | 3.000 | 1.000 | .312 | .750 | SPEB-322P | 438T | T-10 |
| A-5779 | 41° | 2 | 1.625 | 1.050 | .930 | .312 | 3.250 | 1.250 | .438 | .750 | SPEB-432PA | 638T | T-15 |
| A-5767 | 41° | 2 | 2.250 | 1.350 | 1.188 | .250 | 3.750 | 1.500 | .687 | 1.000 | SPEB-6352PA | 1012T | T-25 |
Insert Info.
| Insert Info. 41° Multi-Purpose Chamfer Mills |
||||
| Insert # | I.C. | T | R | Grades |
| SPEB-1511CB | .187 | .082 | .015 | K11 / K22 |
| SPEB-322P | .375 | .125 | .031 | B1M / D66 / K11 / X40 |
| SPEB-432PA | .500 | .187 | .031 | B1M / D66 / K11 / X40 |
| SPEB-6352PA | .750 | .220 | .031 | D66 / K11 / K22 |

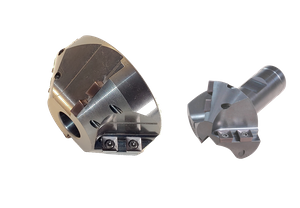

82° Included Long Edge Chamfer Mills
- - Available in Shank & Shell Mill Style
- - Longer length of cut
- - Inserts on alternating flutes reduce tool pressure
- - Positive top inserts provide an excellent finish
- - Minimal witness lines.
| Tool Info. 82° Included Long Edge Chamfer Mill - Shank Style |
||||||||||||
| Tool # | Angle | Flutes | Inserts | D | D-1 | L | L-1 | L.O.C. | S | Insert | Screw | Wrench |
| CC-82 | 82° | 3-1 Effective | 6 | 2.030 | .775 | 3.000 | 1.000 | .900 | .750 | SPEB-2522P | 314T | T-8 |

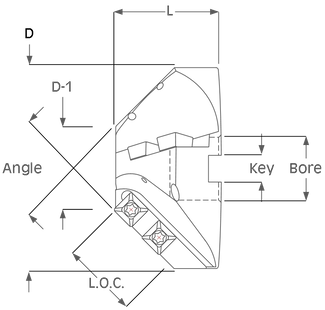

| Tool Info. 82° Included Long Edge Chamfer Mill - Shell Mill Style |
||||||||||||
| Tool # | Angle | Flutes | Inserts | D | D-1 | L | L.O.C. | Bore | Key | Insert | Screw | Wrench |
| CCS-821 | 82° | 4-2 Effective | 8 | 3.250 | 1.718 | 1.625 | 1.130 | 1.000 | .375 | SPEB-332P | 538T | T-10 |
| CCS-822 | 82° | 4-2 Effective | 14 | 4.500 | 1.750 | 2.000 | 2.000 | 1.250 | .500 | |||
Insert Info.
| Insert Info. 41° Multi-Purpose Chamfer Mills |
||||
| Insert # | I.C. | T | R | Grades |
| SPEB-1511CB | .187 | .082 | .015 | K11 / K22 |
| SPEB-322P | .375 | .125 | .031 | B1M / D66 / K11 / X40 |
| SPEB-432PA | .500 | .187 | .031 | B1M / D66 / K11 / X40 |
| SPEB-6352PA | .750 | .220 | .031 | D66 / K11 / K22 |
Technical Data
| Speed and Feed Info. 41° Multi-Purpose Chamfer Mills 82° Included Long Edge Chamfer Mills |
|||
| Material | S.F.M. | .625 Dia. I.P.T. |
1.125 - 4.000 Dia. I.P.T. |
| Mild
& Low Carbon Steel Ex. 1018, 1020, 1117, 1141, 12L14 |
800 - 1200 | .002 - .003 | .003 - .007 |
| High
Carbon & Alloy Steel Ex. 1045, 4140, 4340, 52100, 8620 |
500 - 800 | .002 - .003 | .002 - .006 |
| Lower
Carbon Tool Steel Ex. P-20, H-13, S-7 |
400 - 700 | .002 - .003 | .002 - .006 |
| Tool
Steel Ex. A-2, A-6, D-2, M-2 |
300 - 600 | .001 - .003 | .002 - .006 |
| Stainless
Steel Ex. 304, 316, 420, 15-5PH, 17-4PH |
300 - 600 | .002 - .003 | .002 - .006 |
| Iron Ex. Cast, Ductile, Nodular |
600 - 1000 | .002 - .003 | .004 - .008 |
| Nickel
& Titanium Alloy Ex. Inconel, Hastelloy, TI-6AL-4V |
120 - 180 | .001 - .002 | .001 - .003 |
| Non-Ferrous
Ex. Aluminum, Bronze, Brass |
1000 - 2500 | .002 - .003 | .004 - .010 |
| Insert Grade Selection 41° Multi-Purpose & 82° Longe edge Chamfer Mills |
||
| Material | Material Examples | Preferred Grade |
| High & Low Carbon Steels | 1018, 1020, 1117, 1141, 12L14 | K11 |
| High Carbon & Alloy Steels | 1045, 4140, 4340, 52100, 8620 | K11 |
| Lower Carbon Tool Steels | P-20, H-13, S-7 | K11 |
| Tool Steels | A-2, A-6, D-2, M-2 | K11 |
| Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | K11 |
| Iron | Cast, Nodular | D66 / K11 |
| Iron | Ductile | K11 |
| Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | K11 |
| Non-Ferrous Metals | Aluminum, Bronze, Brass | B1M / X40 or K22 |
| Insert Grade Description | |
| Grade | Description |
| B1M | Uncoated Carbide - No Hone |
| D66 | Multi-Layer Dense Coating |
| K11 | High Performance Nitride Coating |
| K22 | Ultra Smooth Dense Coating |
| X40 | Extremely Smooth Boride Coating |
| **X40 will be replaced with K22 as inventory runs out ** |
|
