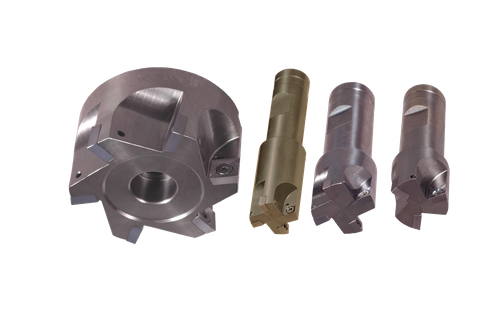

Super Alloy Mills: .500 - 3.000 Diameter
Standard Pitch, MUlti-Flute, Ext. Reach Multi-Flute, & Shell MIll
- - 90° Square Shoulder Within .001
- - 4 Cutting Edges Per Insert
- - Multi-Flute versions for higher feed rates
- - Provides Excellent part finish
- - several insert grades available
| Tool Info. .500 - 2.000 Dia. Super Alloy Mills |
||||||||||
| Tool # | D | Flutes | L | L-1 | D.O.C. | S | Insert | Screw | Wrench | |
| SA-500 | .500 | 1 | 2.625 | .625 | .215 | .500 | SPEB-222P | 300T | T-8 | |
| SA-625 | .625 | 2 | 3.000 | .875 | .215 | .625 | SPEB-222P | 314T | T-8 | |
| SA-750 | .750 | 2 | 3.000 | 1.000 | .280 | .750 | SPEB-2522P | 314T | T-8 | |
| SA-750MF | .750 | 3 | 3.000 | 1.000 | .215 | .750 | SPEB-222P | 314T | T-8 | |
| Extended Reach |
SAL-750MF | .750 | 3 | 3.500 | 1.500 | .215 | .750 | |||
| SA-100 | 1.000 | 3 | 3.000 | 1.000 | .280 | .750 | SPEB-2522P | 314T | T-8 | |
| SA-100MF | 1.000 | 4 | 3.000 | 1.000 | .215 | .750 | SPEB-222P | 314T | T-8 | |
| Extended Reach |
SAL-100MF | 1.000 | 4 | 3.750 | 1.750 | .215 | .750 | |||
| SA-125 | 1.250 | 3 | 3.250 | 1.250 | .340 | .750 | SPEB-332P | 538T | T-10 | |
| SA-125MF | 1.250 | 4 | 3.250 | 1.250 | .280 | .750 | SPEB-2522P | 314T | T-8 | |
| Extended Reach |
SAL-125MF | 1.250 | 4 | 4.000 | 2.000 | .280 | .750 | |||
| SA-125HS | 1.250 | 2 | 3.500 | 1.250 | .465 | 1.000 | SPEB-432PA | 638T | T-15 | |
| SA-150 | 1.500 | 3 | 3.250 | 1.250 | .340 | .750 | SPEB-332P | 538T | T-10 | |
| SA-150MF | 1.500 | 5 | 3.250 | 1.250 | .280 | .750 | SPEB-2522P | 314T | T-8 | |
| Extended Reach |
SAL-150MF | 1.500 | 5 | 4.250 | 2.000 | .280 | 1.000 | |||
| SA-150HS | 1.500 | 3 | 3.500 | 1.250 | .465 | 1.000 | SPEB-432PA | 638T | T-15 | |
| SA-200 | 2.000 | 4 | 3.250 | 1.250 | .340 | .750 | SPEB-332P | 538T | T-10 | |
| SA-200MF | 2.000 | 6 | 3.250 | 1.250 | .280 | .750 | SPEB-2522P | 314T | T-8 | |
| Extended Reach |
SAL-200MF | 2.000 | 6 | 4.500 | 2.250 | .280 | 1.000 | |||
2.000 - 3.000 Dia. Shell Mount Super Alloy Mills
| Tool Info. Shell Mount Super Alloy Mills |
|||||||||
| Tool # | D | Flutes | L | D.O.C. | Bore | Key | Screw | Wrench | Insert |
| SA-2000 | 2.000 | 4 | 1.500 | .465 | .750 | .312 | 638T | T-15 | SPEB-432PA |
| SA-2500 | 2.500 | 5 | 1.625 | .465 | 1.000 | .375 | 638T | T-15 | SPEB-432PA |
| SA-3000 | 3.000 | 6 | 1.625 | .465 | 1.000 | .375 | 638T | T-15 | SPEB-432PA |
Insert Info.
| Insert Info. Super alloy Mills |
||||
| Insert # | I.C. | T | R | Grades |
| SDEB-2151P | .250 | .093 | .015 | X33 |
| SPEB-220P | .250 | .125 | .002 - .004 | K11 |
| SPEB-221P | .250 | .125 | .015 | K11 |
| SPEB-222P | .250 | .125 | .031 | B1M / D66 / K11 / K22 |
| SPEB-2521P | .312 | .125 | .015 | K11 |
| SPEB-2522P | .312 | .125 | .031 | B1M / K11 / K22 C55 |
| SPEB-331P | .375 | .187 | .015 | K11 |
| SPEB-332P | .375 | .187 | .031 | B1M / X33 / X40 / C55 |
| SPEB-333P | .375 | .187 | .047 | K11 |
| SPED-334P | .375 | .187 | .062 | K11 |
| SPEB-431PA | .500 | .187 | .015 | X33 |
| SPEB-432PA | .500 | .187 | .031 | B1M / D66 / K11 / K22 |
| SPEB-433PA | .500 | .187 | .047 | K11/ C55 |
| SPEB-434PA | .500 | .187 | .062 | K11 / X40 |
Technical Info.
| Speed and Feed Info. Super Alloy Mills |
||
| Material | S.F.M. | .500 - 3.000 Dia. IPT |
| Mild
& Low Carbon Steel Ex. 1018, 1020, 1117, 1141, 12L14 |
800 - 1200 | .002 - .005 |
| High
Carbon & Alloy Steel Ex. 1045, 4140, 4340, 52100, 8620 |
500 - 800 | .002 - .004 |
| Lower
Carbon Tool Steel Ex. P-20, H-13, S-7 |
400 - 700 | .002 - .004 |
| Tool
Steel Ex. A-2, A-6, D-2, M-2 |
300 - 600 | .002 - .004 |
| Stainless
Steel Ex. 304, 316, 420, 15-5PH, 17-4PH |
300 - 600 | .002 - .004 |
| Iron Ex. Cast, Ductile, Nodular |
600 - 1000 | .002 - .005 |
| Nickel
& Titanium Alloy Ex. Inconel, Hastelloy, TI-6AL-4V |
120 - 180 | .001 - .003 |
| Non-Ferrous
Metal Ex. Aluminum, Bronze, Brass |
1000 - 2500 | .002 - .006 |
| Insert Grade Selection Super Alloy Mills |
||
| Material | Material Examples | Preferred Grade |
| Mild & Low Carbon Steels | 1018, 1020, 1117, 1141, 12L14 | K11 |
| High Carbon & Alloy Steels | 1045, 4140, 4340, 52100, 8620 | K11 |
| Lower Carbon Tool Steels | P-20, H-13, S-7 | K11 |
| Tool Steels | A-2, A-6, D-2, M-2 | K11 |
| Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | K11 |
| Iron | Cast, Nodular | D66 / K11 |
| Iron | Ductile | K11 |
| Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | K11 |
| Non-Ferrous Metals | Aluminum, Bronze, Brass | K22 / B1M / K11 |
| Insert Grade Description | |
| Grade | Description |
| B1M | Uncoated Carbide - No Hone |
| D66 | Multi-Layer Dense Coating |
| K11 | Universal High Performance Dense Coating |
| K22 | Ultra Smooth Dense Coating - No Hone |
