Long Edge Keli-Mills
1.000 - 1.250 - 1.500 Dia.

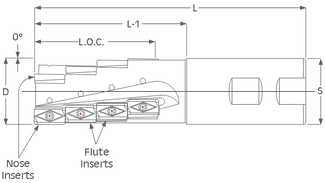

| Tool Info. Long Edge Mills |
|||||||||||
| Tool # | D | Flutes | Inserts | L | L-1 | L.O.C. | S | Nose Inserts | Flute Insert | Screw | Wrench |
| KEL-1000 | 1.000 | 2-1 Effective | 6 | 4.500 | 2.250 | 1.800 | 1.000 | LPMT-52-532 LPMT-52-533 LPMT-52-534 |
LPMT-52-532 | 560T | T-10 |
| KEL-1250 | 1.250 | 3-1.5 Effective | 12 | 5.125 | 2.880 | 2.400 | 1.250 | ||||
| KEL-1500 | 1.500 | 3-1.5 Effective | 15 | 5.750 | 3.500 | 3.000 | 1.250 | ||||
Insert Info.

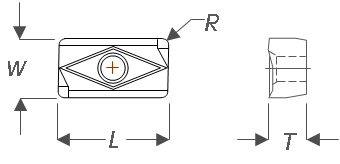

| LPMT / Positive Top | |||||||
| Insert # | R | L | W | T | Available Grades | ||
| LPMT-52-532 | .031 | .600 | .320 | .208 | K11 / B1M | ||
| LPMT-52-533 | .047 | .600 | .320 | .208 | K11 / K22 | ||
| LPMT-52-534 | .062 | .600 | .320 | .208 | X33 | ||
Technical Data
| Speed and Feed Info. Long Edge Mills |
||
| Material | S.F.M. | I.P.T. |
| Stainless Steel Ex. 304, 316, 420, 15-5PH, 17-4PH |
300 - 500 | .002 - .004 |
| Iron Ex. Cast, Ductile, Nodular |
400 - 800 | .004 - .008 |
| Nickel
& Titanium Alloy Ex. Inconel, Hastelloy, TI-6AL-4V |
100 - 200 | .001 - .003 |
| Non-Ferrous
Metal Ex. Aluminum, Bronze, Brass |
800 - 1200 | .005 - .010 |
| Insert Grade Selection | ||
| Material | Material Examples | Preferred Grade |
| Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | K11 |
| Iron | Cast, Nodular | K11 |
| Iron | Ductile | K11 |
| Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | K11 |
| Non-Ferrous Metals | Aluminum, Bronze, Brass | B1M / K22 |
| Insert Grade Description | |
| Grade | Description |
| B1M | Uncoated Carbide - No Hone |
| K11 | Universal High Performance Dense Coating |
| K22 | Ultra Smooth Dense Coating - No Hone |
