Arbor Mount - Full Radius Slotting Cutters
3.000 - 10.000 Diameter
- - Ground & Molded Inserts Available
- - Round Inserts Reduce Cutting Pressure
| Tool Info. Arbor Mount - Full Radius Slotting Cutters |
|||||||||||||||
| .250 Full Radius | |||||||||||||||

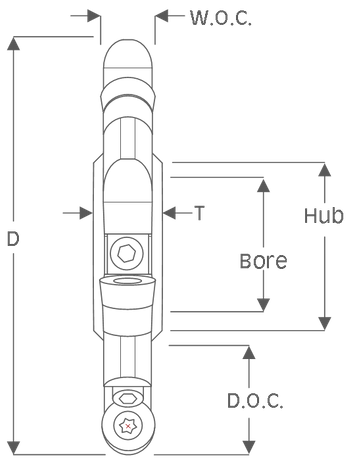

| Tool # | D | Flutes | W.O.C. | D.O.C. | Bore | Key | Hub | T | Cartridge | Wedge | Wedge Screw | Ground Insert | Molded Insert | Insert Screw | Wrench |
| SCR-302 | 3.000 | 8 | .250 | .750 | 1.000 | .250 | 1.400 | .340 | N/A - Solid Pocket Design | RCEB-22G | RCEB-22 | 314T | T-8 | ||
| SCR-402 | 4.000 | 10 | .250 | 1.090 | 1.250 | .312 | 1.620 | .340 | 22R | 15 | 612 | ||||
| SCR-502 | 5.000 | 12 | .250 | 1.590 | 1.250 | .312 | 1.620 | .340 | |||||||
| SCR-602 | 6.000 | 14 | .250 | 1.900 | 1.500 | .375 | 2.000 | .340 | |||||||
| .312 Full Radius | |||||||||||||||
| Tool # | D | Flutes | W.O.C. | D.O.C. | Bore | Key | Hub | T | Cartridge | Wedge | Wedge Screw | Ground Insert | Molded Insert | Insert Screw | Wrench |
| SCR-325 | 3.000 | 7 | .312 | .750 | 1.000 | .250 | 1.400 | .375 | N/A - Solid Pocket Design | RCEB-25G | N/A | 314T | T-8 | ||
| SCR-425 | 4.000 | 9 | .312 | 1.093 | 1.250 | .312 | 1.625 | .375 | 25R | 15 | 612 | ||||
| SCR-525 | 5.000 | 10 | .312 | 1.590 | 1.250 | .312 | 1.625 | .375 | |||||||
| SCR-625 | 6.000 | 12 | .312 | 1.900 | 1.500 | .375 | 2.000 | .375 | |||||||
| .375 Full Radius | |||||||||||||||
| Tool # | D | Flutes | W.O.C. | D.O.C. | Bore | Key | Hub | T | Cartridge | Wedge | Wedge Screw | Ground Insert | Molded Insert | Insert Screw | Wrench |
| SCR-303 | 3.000 | 6 | .375 | .750 | 1.000 | .250 | 1.620 | .430 | N/A - Solid Pocket Design | RCEB-325G | RCEB-325 | 538T | T-10 | ||
| SCR-403 | 4.000 | 8 | .375 | 1.090 | 1.250 | .312 | 1.620 | .430 | 325R | 2 | 8 | ||||
| SCR-503 | 5.000 | 10 | .375 | 1.590 | 1.250 | .312 | 1.620 | .430 | |||||||
| SCR-603 | 6.000 | 12 | .375 | 1.900 | 1.500 | .375 | 2.000 | .430 | |||||||
| SCR-803 | 8.000 | 16 | .375 | 2.900 | 1.500 | .375 | 2.000 | .430 | |||||||
| .500 Full Radius | |||||||||||||||
| Tool # | D | Flutes | W.O.C. | D.O.C. | Bore | Key | Hub | T | Cartridge | Wedge | Wedge Screw | Ground Insert | Molded Insert | Insert Screw | Wrench |
| SCR-304 | 3.000 | 5 | .500 | .750 | 1.000 | .250 | 1.400 | .625 | N/A - Solid Pocket Design | RCEB-435G | RCEB-435 | 838T | T-20 | ||
| SCR-404 | 4.000 | 6 | .500 | 1.090 | 1.250 | .312 | 1.620 | .625 | 435R | 3 | 10 | ||||
| SCR-504 | 5.000 | 8 | .500 | 1.590 | 1.250 | .312 | 1.620 | .625 | |||||||
| SCR-604 | 6.000 | 10 | .500 | 1.900 | 1.500 | .375 | 2.000 | .625 | |||||||
| SCR-804 | 8.000 | 12 | .500 | 2.900 | 1.500 | .375 | 2.000 | .625 | |||||||
| SCR-1004 | 10.000 | 16 | .500 | 3.900 | 1.500 | .375 | 2.000 | .625 | |||||||
| .625 Full Radius | |||||||||||||||
| Tool # | D | Flutes | W.O.C. | D.O.C. | Bore | Key | Hub | T | Cartridge | Wedge | Wedge Screw | Ground Insert | Molded Insert | Insert Screw | Wrench |
| SCR-645 | 6.000 | 5 | .625 | 1.900 | 1.500 | .375 | 2.000 | .750 | 53R | 35 | 141D | RCEB-53G | N/A | 838T | T-20 |
| SCR-845 | 8.000 | 8 | .625 | 2.900 | 1.500 | .375 | 2.000 | .750 | |||||||
| SCR-1045 | 10.000 | 10 | .625 | 3.900 | 1.500 | .375 | 2.000 | .750 | |||||||
| .750 Full Radius | |||||||||||||||
| Tool # | D | Flutes | W.O.C. | D.O.C. | Bore | Key | Hub | T | Cartridge | Wedge | Wedge Screw | Ground Insert | Molded Insert | Insert Screw | Wrench |
| SCR-605 | 6.000 | 5 | .750 | 1.687 | 1.500 | .375 | 2.000 | 1.000 | 64R | 4 | 5161D | N/A | RCEB-64 | 1012T | T-25 |
| SCR-805 | 8.000 | 7 | .750 | 2.687 | 1.500 | .375 | 2.000 | 1.000 | |||||||
| SCR-1005 | 10.000 | 8 | .750 | 3.687 | 1.500 | .375 | 2.000 | 1.000 | |||||||
- 3.000 Diameter full radius slotting cutters have solid pockets.
- All tools larger than 3.000 diameter have replaceable cartridges.
Insert Info.
| Insert Info. Ground Inserts |
|||
| Insert # | I.C. | T | Grades |
| RCEB-22G | .250 | .125 | B1M / K11 / K22 |
| RCEB-25G | .312 | .125 | B1M / X33 / X40 |
| RCEB-325G | .375 | .156 | B1M / K11/ K22 |
| RCEB-435G | .500 | .220 | B1M / K11 / X40 |
| RCEB-53G | .625 | .220 | B1M / X33 / X40 |
| Insert Info. Molded Inserts |
|||
| Insert # | I.C. | T | Grades |
| RCEB-22 | .250 | .125 | A10M / K11 |
| RCEB-325 | .375 | .156 | K11 |
| RCEB-435 | .500 | .220 | K11 |
| RCEB-64 | .750 | .250 | A10M / K11 |
Technical Info.
| Speed and Feed Info. | ||
| Material | S.F.M. | I.P.T. |
| Mild & Low Carbon Steel Ex. 1018, 1020, 1117, 1141, 12L14 |
800 - 1200 | .002 - .006 |
| High
Carbon & Alloy Steel Ex. 1045, 4140, 4340, 52100, 8620 |
500 - 800 | .002 - .005 |
| Lower
Carbon Tool Steel Ex. P-20, H-13, S-7 |
400 - 700 | .002 - .005 |
| Tool
Steel Ex. A-2, A-6, D-2, M-2 |
300 - 600 | .002 - .004 |
| Stainless
Steel Ex. 304, 316, 420, 15-5PH, 17-4PH |
300 - 600 | .002 - .004 |
| Iron Ex. Cast, Ductile, Nodular |
600 - 1000 | .003 - .007 |
| Nickel
& Titanium Alloy Ex. Inconel, Hastelloy, TI-6AL-4V |
120 - 180 | .001 - .003 |
| Non-Ferrous
Metal Ex. Aluminum, Bronze, Brass |
1000 - 2500 | .003 - .008 |
| Insert Grade Selection Ground Inserts |
||
| Material | Material Examples | Preferred Grade |
| Mild & Low Carbon Steels | 1018, 1020, 1117, 1141, 12L14 | K11 or X33 |
| High Carbon & Alloy Steels | 1045, 4140, 4340, 52100, 8620 | K11 or X33 |
| Lower Carbon Tool Steels | P-20, H-13, S-7 | K11 or X33 |
| Tool Steels | A-2, A-6, D-2, M-2 | K11 or X33 |
| Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | K11 or X33 |
| Iron | Cast, Nodular | K11 or X33 |
| Iron | Ductile | K11 or X33 |
| Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | K11 or X33 |
| Non-Ferrous Metals | Aluminum, Bronze, Brass | K22 or X40 / B1M |
| Insert Grade Selection Molded Inserts |
||
| Material | Material Examples | Preferred Grade |
| Mild & Low Carbon Steels | 1018, 1020, 1117, 1141, 12L14 | K11 or X33 / A10M |
| High Carbon & Alloy Steels | 1045, 4140, 4340, 52100, 8620 | K11 or X33 / A10M |
| Lower Carbon Tool Steels | P-20, H-13, S-7 | K11 or X33 / A10M |
| Tool Steels | A-2, A-6, D-2, M-2 | K11 or X33 / A10M |
| Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | K11 or X33 / A10M |
| Iron | Cast, Nodular | K11 or X33 / A10M |
| Iron | Ductile | K11 or X33 / A10M |
| Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | K11 or X33 / A10M |
| Non-Ferrous Metals | Aluminum, Bronze, Brass | K11 or X33 / A10M |
| Insert Grade Description | |
| Grade | Description |
| B1M | Uncoated Carbide - No Hone |
| K11 | Universal High Performance Dense Coating |
| X33 | High Performance Nitride Coating |
| K22 | Ultra Smooth Dense Coating - No Hone |
| X40 | Extremely Smooth Coatiing - Periphery Ground |
